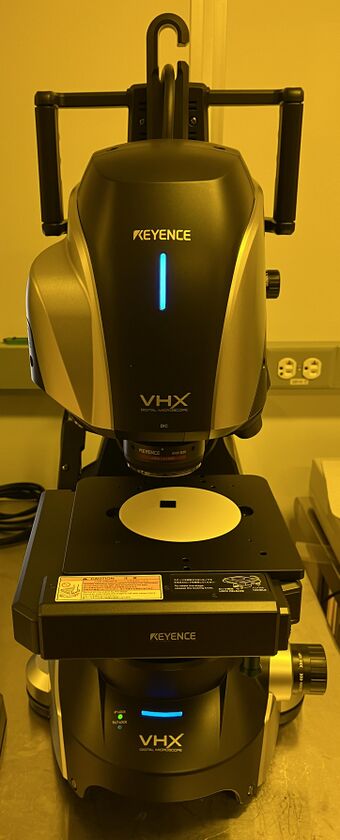

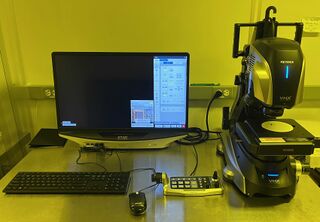

Digital Microscope Keyence VHX7000
Jump to navigation
Jump to search
|
Description
The Keyence VHX Series 4K Digital Microscope uses high-resolution 4K imaging and advanced analysis software for high-magnification imaging, 2D/3D measurements, and more. The VHX Series has a depth of field that is 20 times greater than conventional optical microscopes. 2D and 3D measurements for roughness, contamination, grain size, and other measurements can be performed. The digital images can be saved in their original form or with measurements applied.
Objectives Available
- Low Magnification Lens = 20-100x
- Medium Magnification Lens = 100-500x
- High Magnification Lens = 500-2500x
- Highest Magnification Lens = 2500-6000x
Resources
SOPs & Troubleshooting
- coming soon
Manufacturer Manuals
