Nova 600 NanoLab: SEM, Ga-FIB, GIS & Omniprobe

Nova 600 Instrument Type Microscopy Techniques SEM, Ga-FIB, Omniprobe, Immersion Lens Imaging, GIS, Cross-sectioning, TEM Lamella Sample Prep Staff Manager Alireza Ghaffari Staff Email alireza@caltech.edu Staff Phone 626-395-3984 Reserve time on FBS Request training via FBS User Dashboard Lab Location B233B Steele Lab Phone 626-395-1534 Manufacturer FEI (now Thermo Fisher) Model Nova 600 NanoLab

Description

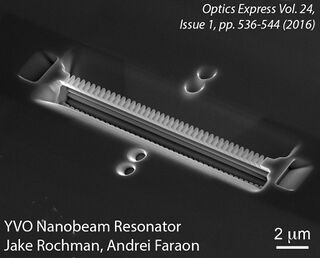

The Nova 600 is a "dual-beam" system that combines a field emission gun (FEG) scanning electron microscope (SEM) with a gallium focused ion beam (Ga-FIB). It can be used to capture high-quality images (clearly resolving sub-10 nm features) and perform site-specific etching and material deposition (creating sub-20 nm features). It is also equipped with an Omniprobe nanomanipulator, which can be used to lift out lamella samples that are prepared for use in a transmission electron microscope (TEM). See a full list of training and educational resources for this instrument below.

SEM Applications

• Ultra-High-Resolution Imaging (Immersion Mode aka UHR Mode)
• High-Resolution Imaging (Field-Free Mode aka Normal Mode)
• Secondary Electron (SE) imaging with an Everhart-Thornley Detector (ETD) & Through-the-Lens Detector (TLD)
• Backscattered Electron (BSE) imaging with a TLD
• Platinum deposition via Gas Injection System (GIS)
• Automated imaging with RunScript program & AutoScript language

Ga-FIB Applications

• Directly etch patterns into material
• Cutting & Imaging Cross-Sections
• TEM Lamella Sample Preparation using an Omniprobe for Liftout
• Platinum & SiO_x deposition via GIS
• Enhanced etch with XeF₂ via GIS
• Automated patterning with RunScript program & AutoScript language

Resources

SOPs & Manuals & SDS

• KNI Microscopy Policies
• SOP, Manuals and SDS
• Nova NanoLab Operation Manual
• Gas Injection Systems – Deposition of Platinum (Technical Note)
• Gas Injection Systems – Deposition of SiOx (Technical Note)
• Gas Injection Systems – Etching with IEE aka XeF₂ Etch (Technical Note)
• Scripting – AutoScript Language Manual (year 2000 Technical Note: most complete)
• Scripting – RunScript Manual

Video Tutorials

• Getting Started | Basic SEM Alignment
• Astigmatism Correction (Details | On Right-Angle Features | Stigmator Alignment)
• Adjusting TLD Voltage to Capture SE vs. BSE Signal

Graphical Handouts

• SEM Concepts
• Ga-FIB Concepts
• SEM & Ga-FIB Alignments
• Guide to Optimizing SEM Imaging

Presentations

• SEM Essentials: Capabilities and Limitations of Scanning Electron Microscopy; and SEM Setup, Parameters and Theory for Successful Operations and Measurements
  • Download .pptx Slides
• Scanning Electron Microscopy (SEM): Principles, Techniques & Applications
  • Pptx Slides | YouTube Lecture
• Gallium Focused Ion Beam (Ga-FIB) Microscopy: Principles, Techniques & Applications
  • PPtx Slides | YouTube Lecture

Simulation Software

• CASINO Electron Beam Simulation Software – simulate e-beam/specimen interactions
• The Stopping & Range of Ions in Matter (SRIM) – simulate i-beam/specimen interactions

Calibrate Measurements with NIST Standard

• The KNI has a NIST-traceable standard against which SEM and Ga-FIB measurements can be compared. See Slides 54-55 of the SEM Presentation for details. Ask staff for help finding and using the standard in the lab.

Sample Preparation

• Use the Carbon Evaporator to make non-conductive samples conductive by applying 2-10 nm of evaporated carbon.
• Use the O₂/Ar Plasma Cleaner to remove hydrocarbons from the sample surface to avoid creating dark contamination spots on your features while imaging them.

Stubs for specimen mounting

• Stubs used for mounting specimens are considered a personal, consumable item in the KNI. There are some stubs at each Microscope which can be used by any KNI microscopy user. You can also buy your own stubs so that you can keep them clean and available to you. There are many stub geometries and configurations. If you chose to buy your own stubs, please show them to the staff microscopist prior to using them: some stubs including stubs with copper clips have large height differences and can only be used safely in specific operating conditions.

• • Buy stubs without copper clips

Guide to Choosing KNI SEMs & FIBs

• Consult this guide for help in choosing the best SEMs and FIBs for your work

Specifications

Manufacturer Specifications

• Nova 600 NanoLab Data Sheet (not all parameters apply to our instrument, see below for details specific to the KNI's Nova 600)

SEM Specifications

• Minimum Feature Size Resolved in Immersion Mode: ~5 nm
• Voltage Range: 0.2 to 30.0 kV
• Current Range: ~10 pA to 20 nA
• Apertures: 10 μm, 15 μm, 20 μm, 30 μm
• Eucentric Height: ~5.15 mm working distance (WD)
• Stage Range: ±80 mm X & Y travel, 12 mm Z travel, -12 to 58° tilt, 360° rotation
• ETD Grid Bias Range: -150 to 300 V
• TLD Bias Range: -100 to 150 V
• Ultimate Vacuum: 5e-7 mbar

Ga-FIB Specifications

• Minumum Probe Size Achieved: ~7 nm
• Minimum Feature Size Etched: ~25 nm
• Minimum Feature Size Resolved by Imaging: ~10 nm
• Voltage Range: 5 to 30 kV
• Current Range: 1 pA to 20 nA
• Eucentric Height: ~5.15 mm working distance (WD)
• Stage Tilt to be perpendicular to Ga-FIB: 52°
• ETD Grid Bias Range: -150 to 300 V
• TLD Bias Range: -100 to 150 V
